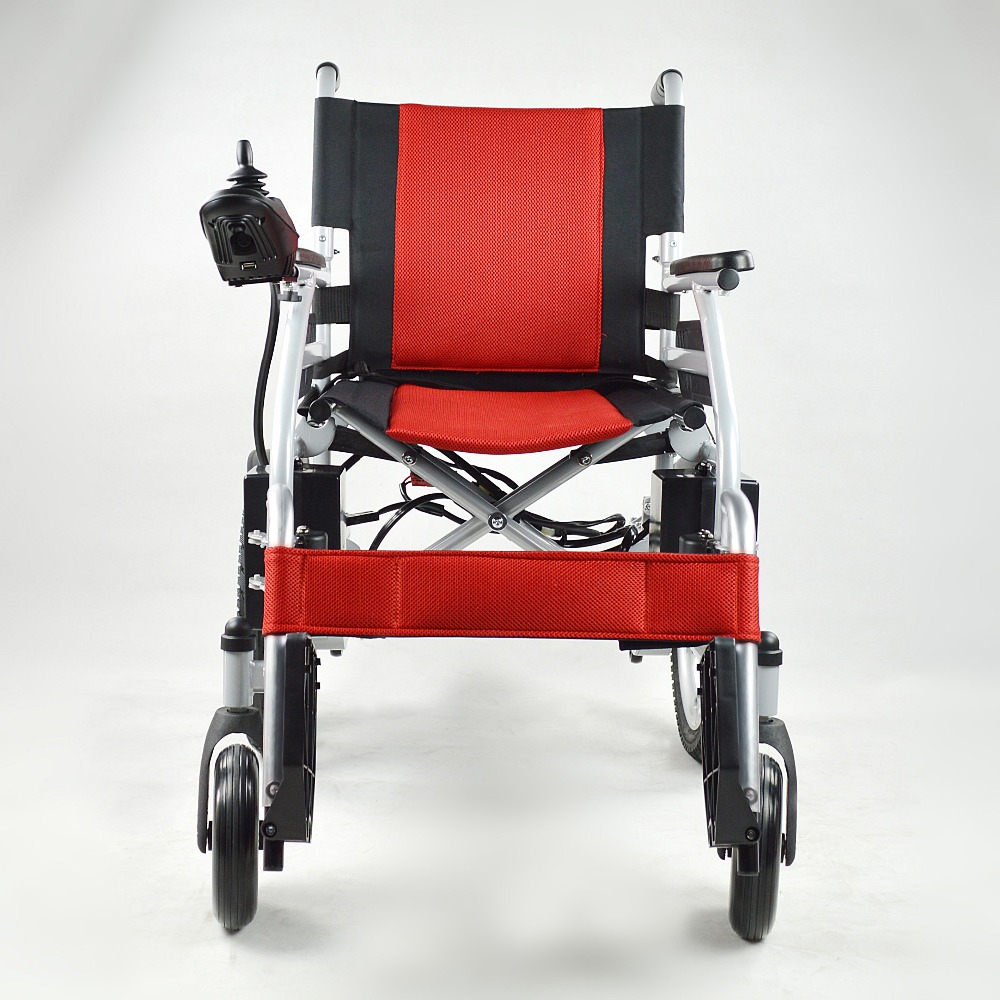

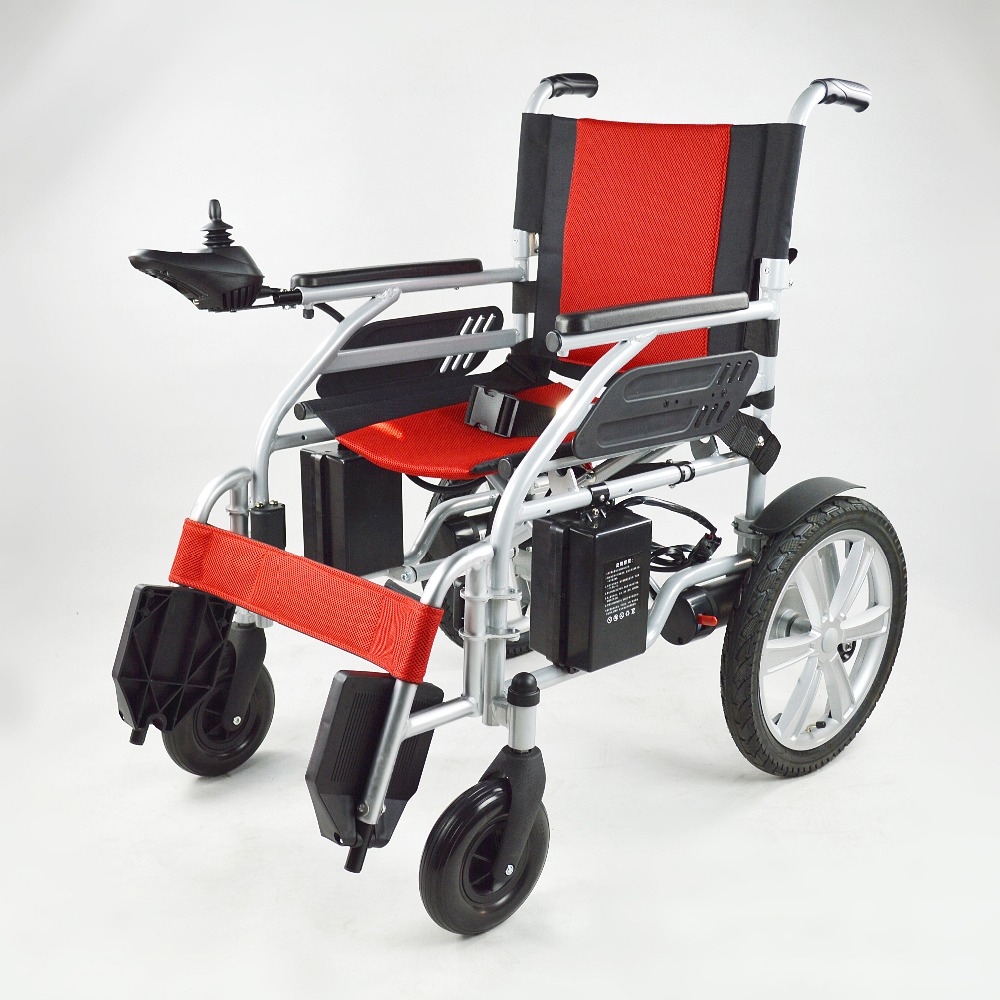

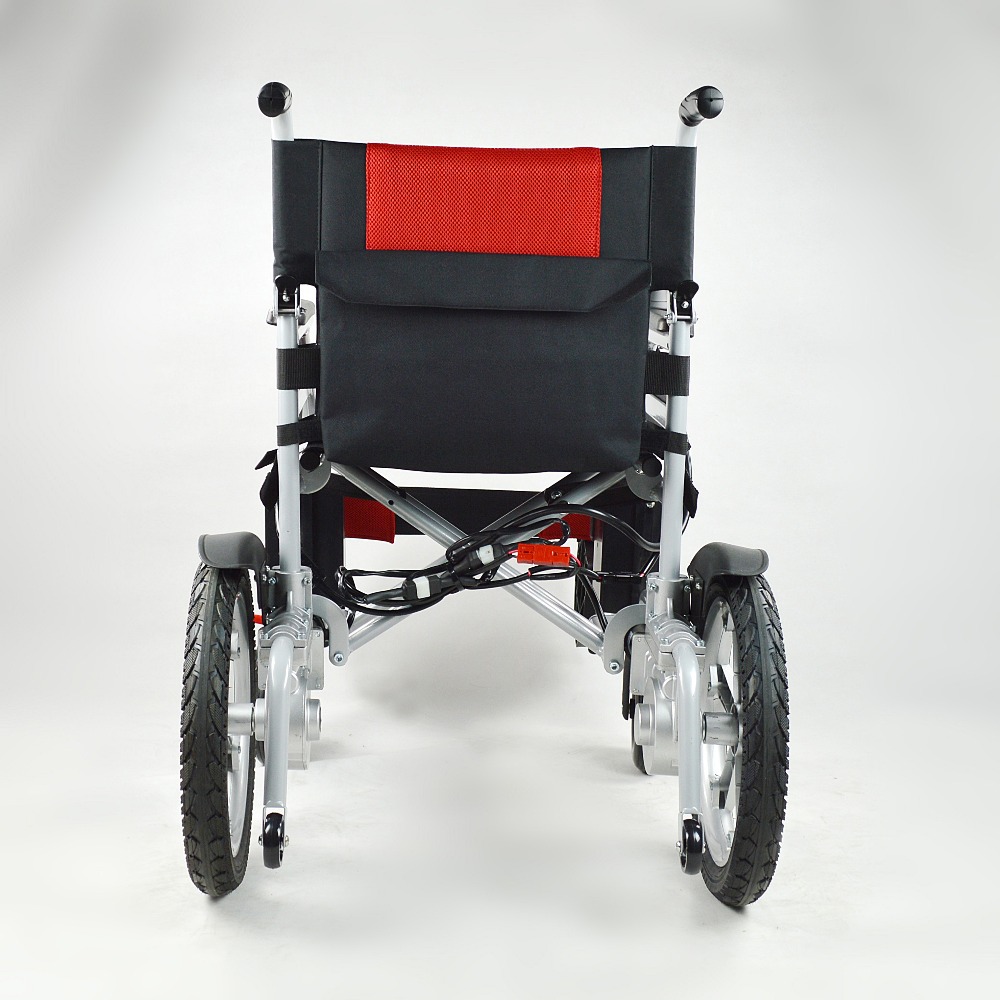

TEW005D production features:
l Powder coated steel frame

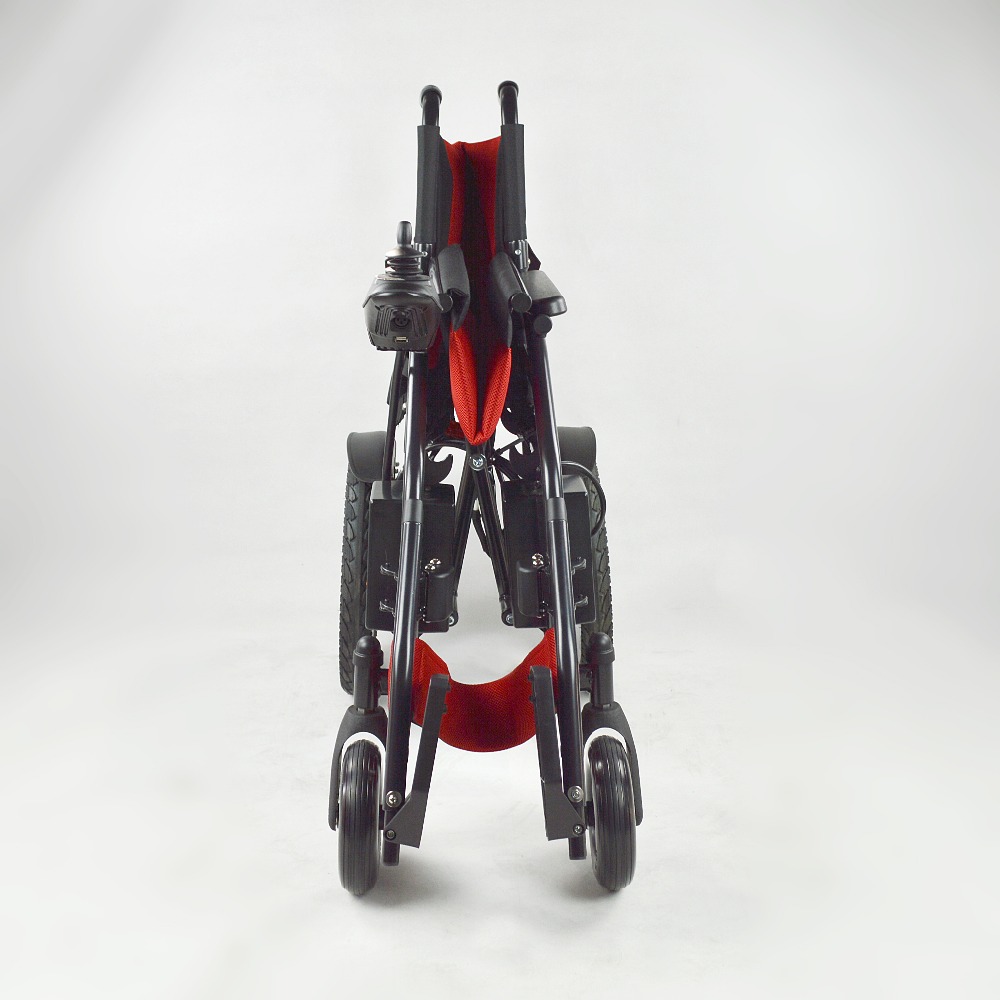

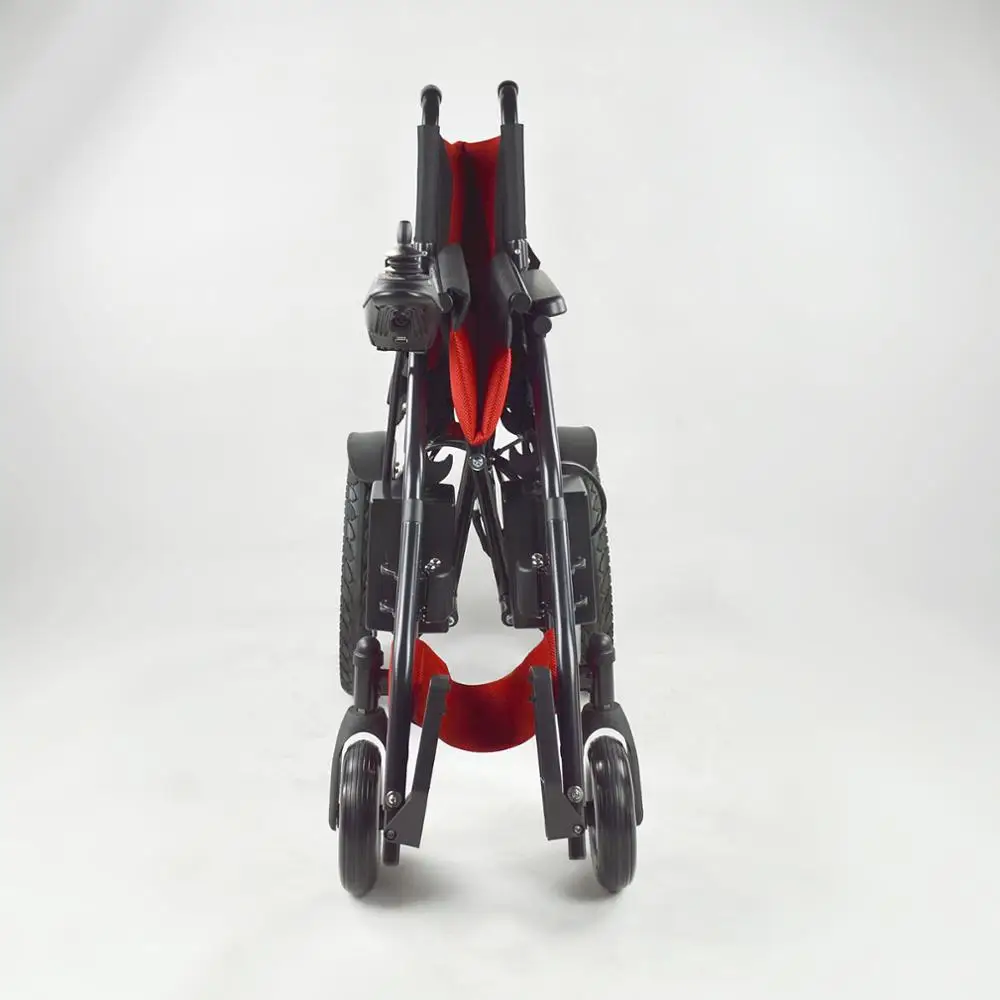

l Folded when without taken out battery
l Colors: Gray,Black
l Switch on-off, speed regulating, speed-battery charge indicator, audio alarm system are located on joystick
l Couple of motors,couple of batteries
l Detachable footplate
l Adjustable height armrest
l System of anti-tipper for blocked to backwards overturning
|
Model No. |
TEW005D |
|
Overall length |
105cm |
|
Overall width |
60cm |
|
Overall height |
95cm |
|
Folded size (L*W*H) |
100*38*72cm |
|
Weight capacity |
130KG |
|
Tire type |
Front 8" PU solid rear:16" pneumatic |
|
Gradeability |
8-15 degree |
|
Max sppeed |
9km/hr |
|
Driving range |
16-20km |
|
Joystick/controller type |
Macon |
|
Motor type |
200W *2 Brush motor |
|
Seat depth |
43cm |
|
Seat width |
43cm |
|
Seat height |
50cm |
|
Shock absorption system |
Front Yes; Back: no |
|
Battery type |
Lead-acid battery 24V/12AH (20AH is max optional) |
|
Charger |
24V/5A |
|
Charging time |
6-8 hours |
|
Overall weight |
42KG |
|
Weight w/o battery |
30KG |
|
Package size by Carton |
83*50*76cm |
